tc-5B-rs422, midi Time code interfaces
The TC-5B-RS422 replaces the P2MMC
Note: the TC-5B-MIDI has been replaced by the TC-5net-MIDI
Generator, Reader, Converter LTC-rs422-USB, GPIO, Real Time Clock
Features
7 GPIO+9GPI, USB, GPO Events
Real Time Clock
LTC Timecode In/Out (XLR)
Dual Channel USB-MIDI Interface , bi-directional, converts to MTC and LTC
LTC/MTC generator controlled from front panel or by MMC from USB or RS422
Mac/Windows Event Control/Setup Software
Large (0.56”/ 14 mm) Ultra Bright LED Display

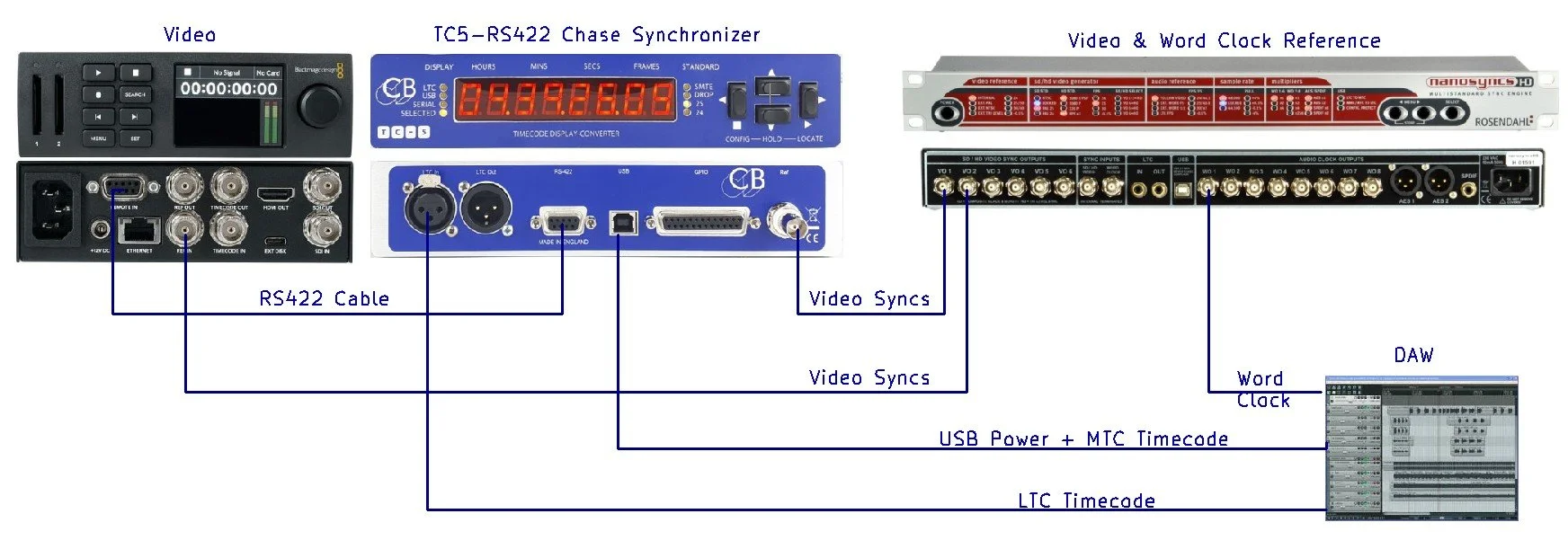

Word Clock or SD/HD Video Sync Reference

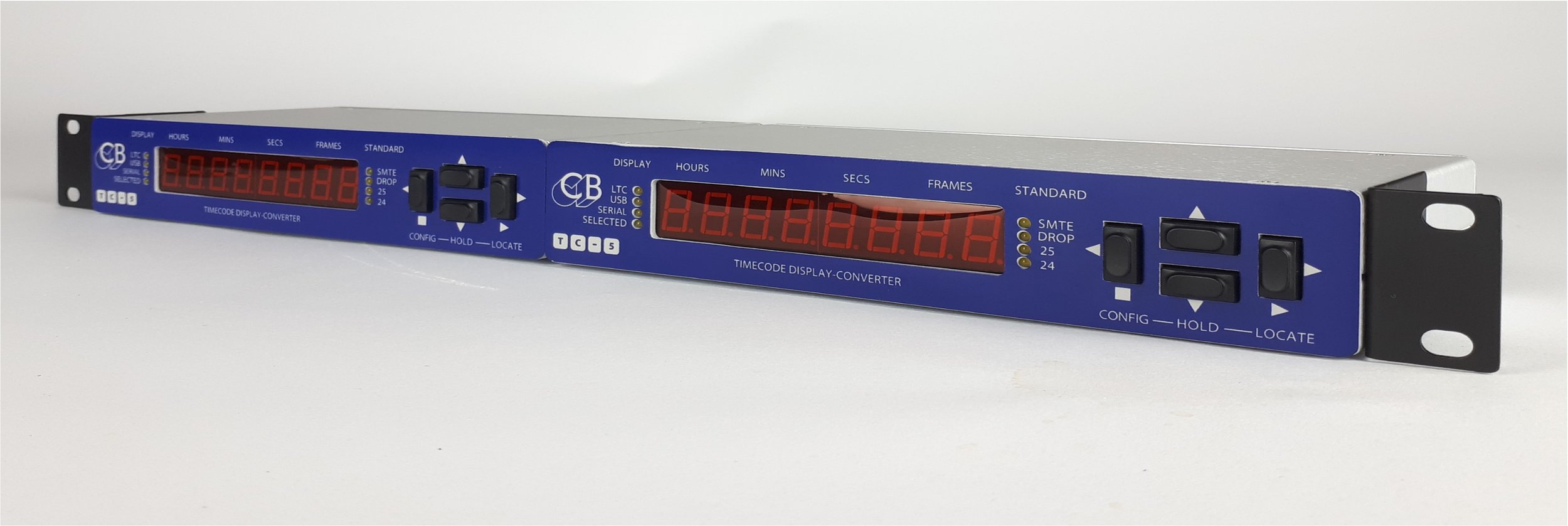

1U Rack mount brackets available

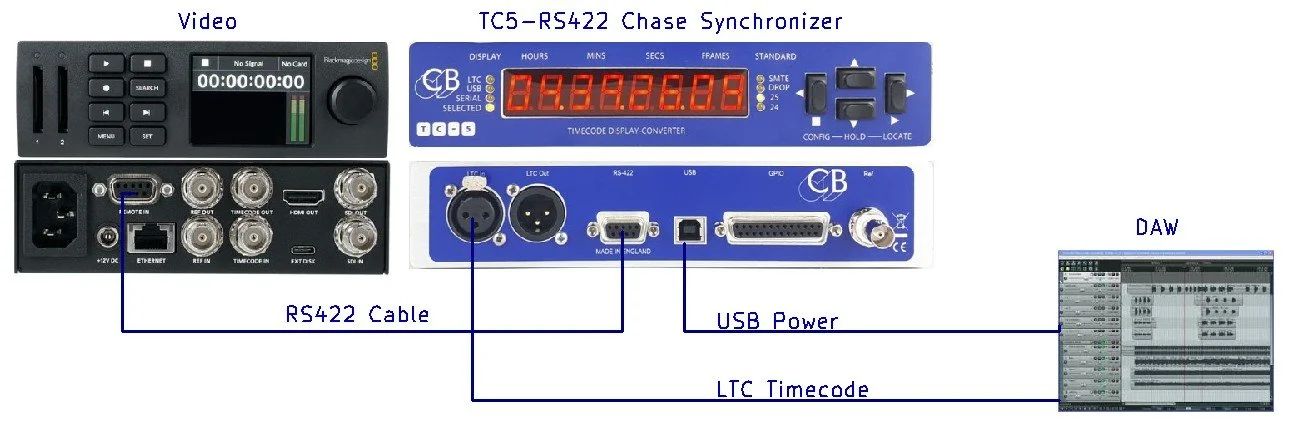

TC-5B-RS422: RS422 configured as device or controller
TC-5B-RS422: Converts MMC to Sony P2
Description
The TC-5B-RS-422 is a professional MTC/LTC interface with LED display, Video Sync, Word Clock input and USB port. The TC-5B-RS-422 is designed to be equally at home in Audio, Video and Lighting Environments, applications include Digital Audio Workstations, Non Linear Video Editors, Mixing Consoles, Show Control and Lighting Control. Replacement for MIF4. The dual midi interface allows for the control/setup software to be run at the same time as a user application.
As a test tool the TC-5B-RS-422 can check the frequency of Timecode, MTC, Video and Word Clock. The TC-5B-RS-422 can also compare LTC with MTC.
Order TC-5B-RS422 from our online shop
TC-5B-rs422 data Packs
Available on the Downloads page
We are proud to announce the release of the TC-5net Midi and the TC-7 Midi.
The TC-5net adds an Ethernet port with Artnet timecode support to the TC-5B-Midi. It is available with the ethernet port fitted or without the ethernet port fitted, with the ability to upgrade to have an ethernet port at a later date.
The TC-7 Midi adds dual LTC inputs, timecode distribution and Status display to the TC-5net Midi, in a 1U unit.
