EDL Recorder 2 - Live capture of Video Editor Decisions


Features

  • A maximum of Eight or Sixteen Source Reels GP Inputs specify on Order

  • Mac and Windows Program with USB LTC reader (P2MMC-USB)

  • Uses standard Driver - No Driver Required

  • Multiple EDL formats

  • Mark Key - Keyboard or GPI

  • Record Key - Also available on GPI

  • Requires a special version of P2MMC as GPI and LTC interface

Description

The CB EDL recorder enables easy reconstruction of live edits to simplify and reduce the time required in the generation of edited highlights. By logging the real time decisions of the video editor in a standard EDL format the original camera tapes/files may be accessed quickly and accurately.

AVID Import

The current release of Media Composer (2019) seems to have issues with EDL-files, it cannot even import EDL’s generated by Avid! The Media Composer can import AAF files, one way to generate a AAF from an EDL is to use Final Cut as follows:

Import the EDL in Final Cut, it works perfectly as expected,  the AAF export from Final Cut can be imported into Avid.

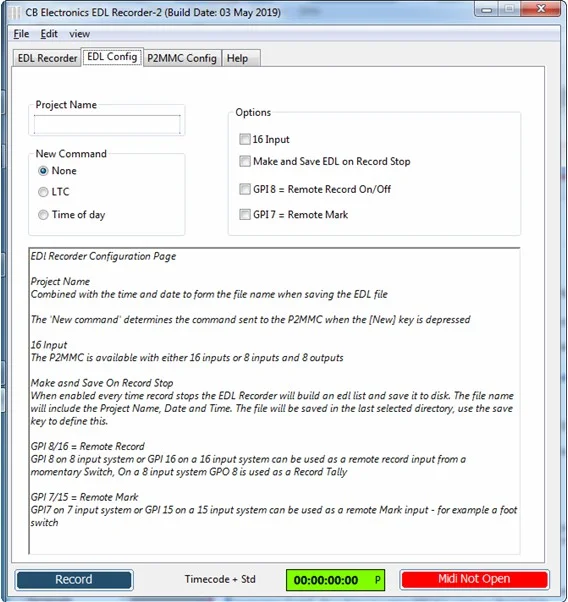

EDL Capture Options Page

EDL Capture Options Page

2019-05-14 23.05.08.jpg

Remote Control From your phone or tablet!

Remote the Record and four Mark keys using this App.

The Function keys display the labels defined in the EDL recorder App.

install the TouchOsc App ( $5 or 5 Euro) and download the layout from the Software tab below.

Manuals and Data Sheets

Click on link below to open the EDL Recorder Manual

Software

Click on link below to download EDL_Recorder2-win/mac software.

TouchOSC Remote Control Layout for IOS and Android
