TFT422-USB / DFC422-USB - Universal RS422/USB Remote

Features

•      Connects to RM-6 or existing systems via 9 pin ‘D’ connector (1:1).

•      9 pin and USB inputs for Consoles and/or CBServer

•      18 LCD Macro keys – Label changes with function

•      Matching panels and colour to consoles

•      Jog wheel on Larger panels or can replace four switches on DFC  Panel

•      User configurable panels

•      GPIO for special functions

Description

The TFT Remote control can be used with any of our existing systems or as a new installation with a RM-6 Rack mount synchroniser.

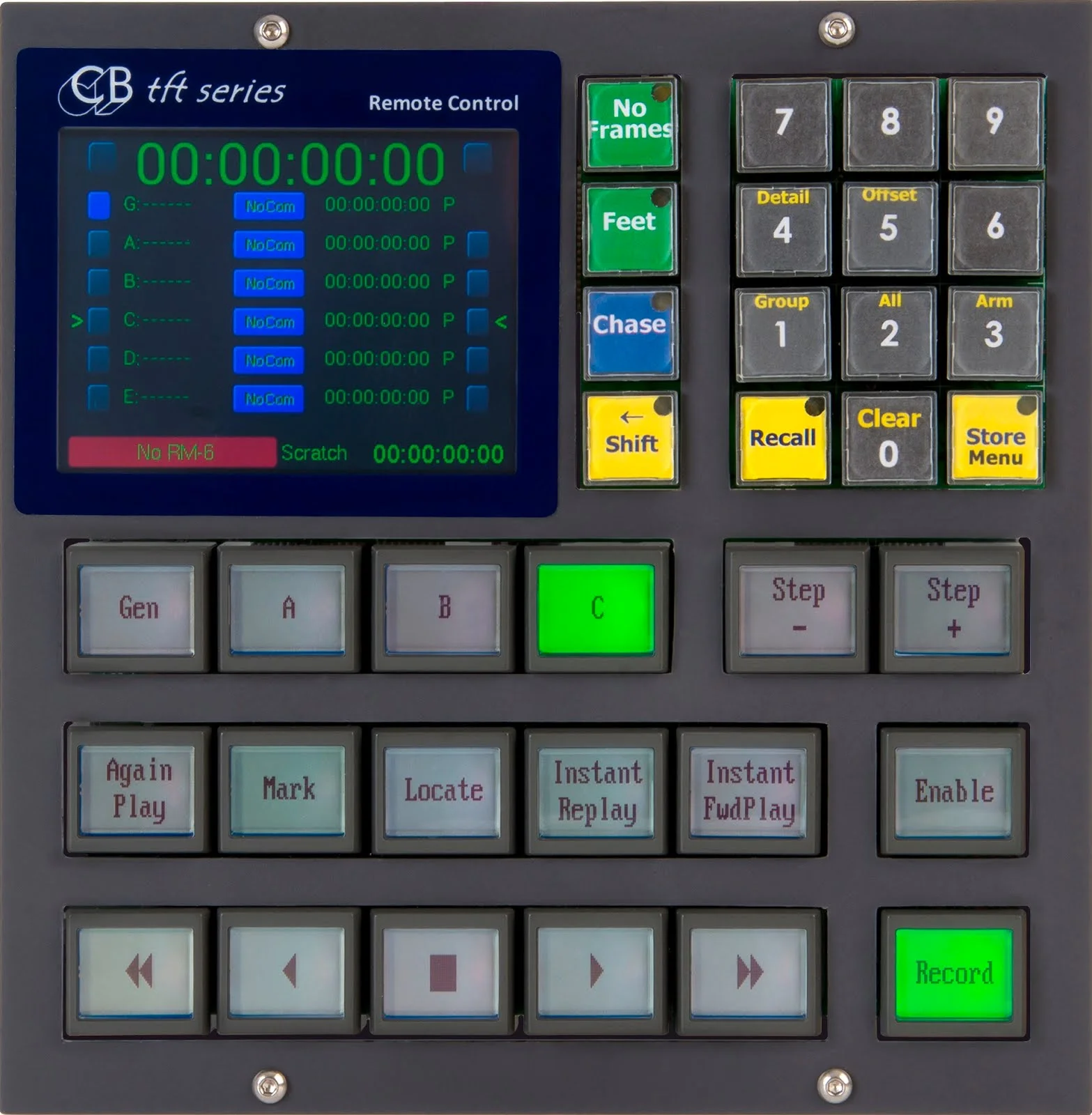

The TFT Remote can be supplied as a panel to drop into your console like the DFC panel shown above or as a standalone desk top unit also show above.

We have standard panels for a number of existing consoles (AMS Neve DFC, Harrison, Euphonix…).

TFT-422 Display

Manuals and Data Sheets

Français

Windows and Mac TFT-422 Configuration and Firmware

All the keys on the TFT-422 may be defined indiviually using the configuration tool. TFT-422 Software is saved in Flash Rom and can be updated using the windows/mac configuration tool via the USB port.

20th Sept 2016 - SR4XMC and Assemble Macro added
19th Aug 2015 - Keyboard save/recall routines updated
28th Jan 2015 - Key Macro Lock error mesages modified
14th Jan 2015 - Key Macro Lock error mesages added
11th Aug 2014 - New DFC-tft and UR-tft panels added with Extra Macros
23rd May 2014 - More Macros and better information
5th Nov 2013 - Mosaic Macro Added

Windows configuration program

Mac-X configuration program Windows/Mac/Linux DriversFTDI VCP Driver PageThe FTDI USB chipset is used, the latest drivers may be found on the FTDI site
