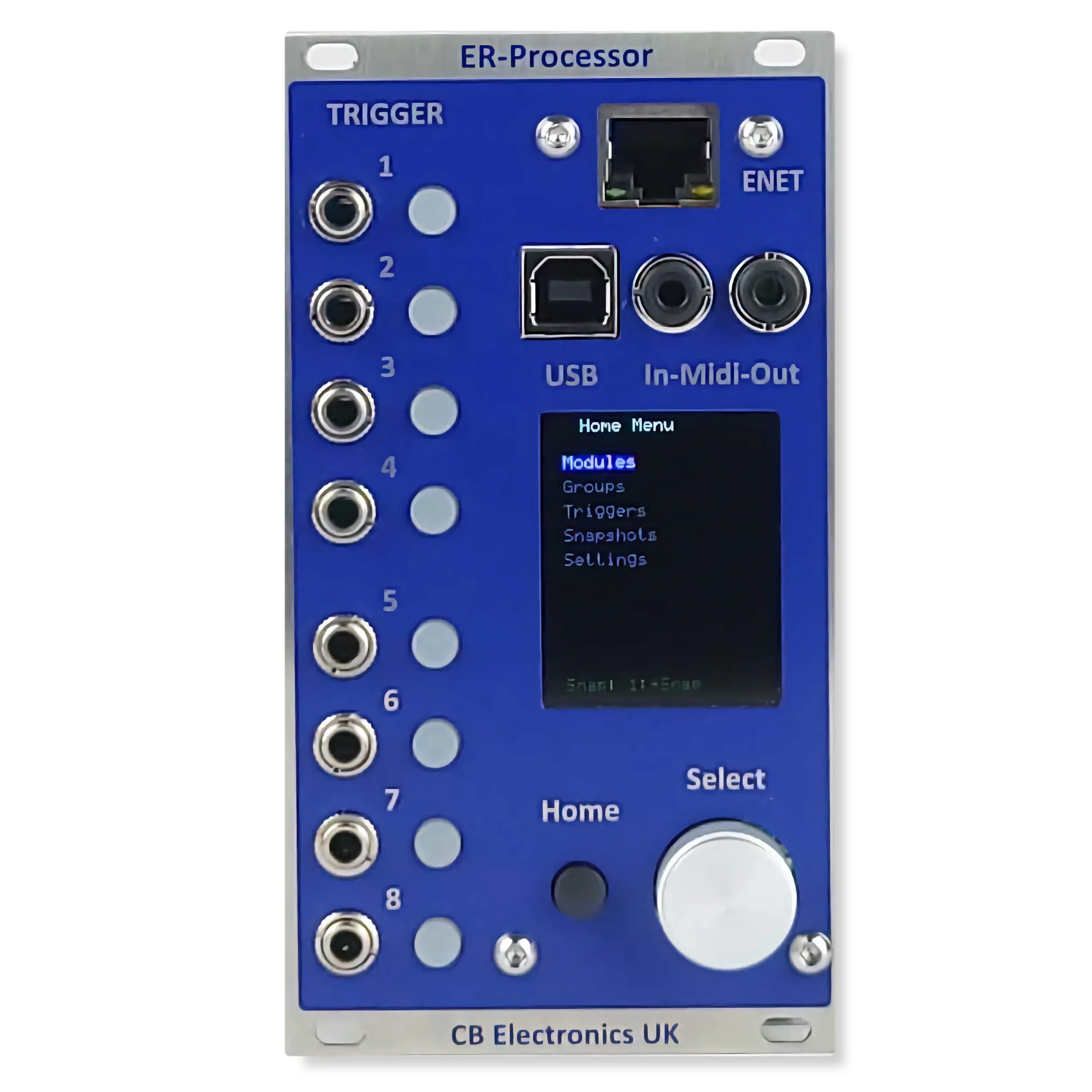

ER-Processor
The processor module provides computer interface via USB Midi and Ethernet, Midi Snapshot automation, Serial (5pin DIN) Midi interface to Midi foot Switch or Keyboards. A Trigger Section with 8 3.5mm Jacks and Switches which may be used as control or Record and Playback Trigger or Gate signals via Midi. The processor includes a 128 snapshot store which holds the parameters for up to 16 modules. All functions may be controlled using the colour tft display and encoder or from the XPatch5 Win/Mac program.
The processor module provides computer interface via USB Midi and Ethernet, Midi Snapshot automation, Serial (5pin DIN) Midi interface to Midi foot Switch or Keyboards. A Trigger Section with 8 3.5mm Jacks and Switches which may be used as control or Record and Playback Trigger or Gate signals via Midi. The processor includes a 128 snapshot store which holds the parameters for up to 16 modules. All functions may be controlled using the colour tft display and encoder or from the XPatch5 Win/Mac program.
The processor module provides computer interface via USB Midi and Ethernet, Midi Snapshot automation, Serial (5pin DIN) Midi interface to Midi foot Switch or Keyboards. A Trigger Section with 8 3.5mm Jacks and Switches which may be used as control or Record and Playback Trigger or Gate signals via Midi. The processor includes a 128 snapshot store which holds the parameters for up to 16 modules. All functions may be controlled using the colour tft display and encoder or from the XPatch5 Win/Mac program.
Features at a glance:
USB Midi for Computer Control or DAW Interface
Ethernet for Computer Control
Control of up to 16 modules
3.5mm Jack Serial Midi in and out for Keyboard or Midi Foot Switch
1.8" Color TFT Display, Configuration and Control of modules
Encoder with Push Switch, Configuration and Control
Home Switch - Return to Home Menu
Snapshot Automation (128 point)
Interfaces with XPatch5 Windows/Mac program
A select switch on Modules for immediate control
Processor Trigger Section
Eight Trigger Input/Outputs on 3.5mm Jacks
Configure as Active Low for simple footswitch
Eight Switches
Functions include Trigger, Gate, Snapshot Control, Macro Keys
Record to and Playback from USB or Serial Midi
