UR422-USB and SR422-USB - Universal RS422/USB Remote


Features

  • Direct connection to Audio/Video Workstations via USB

  • Sony P2, VDCP, and Odetics protocols with Clip select

  • Optional T-Bar Control – Slow motion or Clip position

  • Two RS-422 ports – Port A may be configured as input or output

  • Precision weighted Jog Wheel with Shuttle, Jog or Step function

  • Bi/Tri Level Video Sync Input – Frame accurate control

  • LTC Timecode Output – Controlled Machine or Virtual Machine

  • Plug & Play, Automatic Machines Recognition and Configure

  • 32 cue points and 16 loops

  • 8 GP Inputs or Outputs – Telecine, video switcher control

  • Large Display 2 line by 40 character display

  • 22 User Definable keys with LED's All keys are user definable via PC/Mac Program

  • Key functions include Track Arm, Monitor, Edit, Locates, Loop's, Macro's

  • Special CB Macro functions Instant Replay, Instant Forward, Again

  • Field software update Software may be updated by user using PC or Mac with serial port


Description

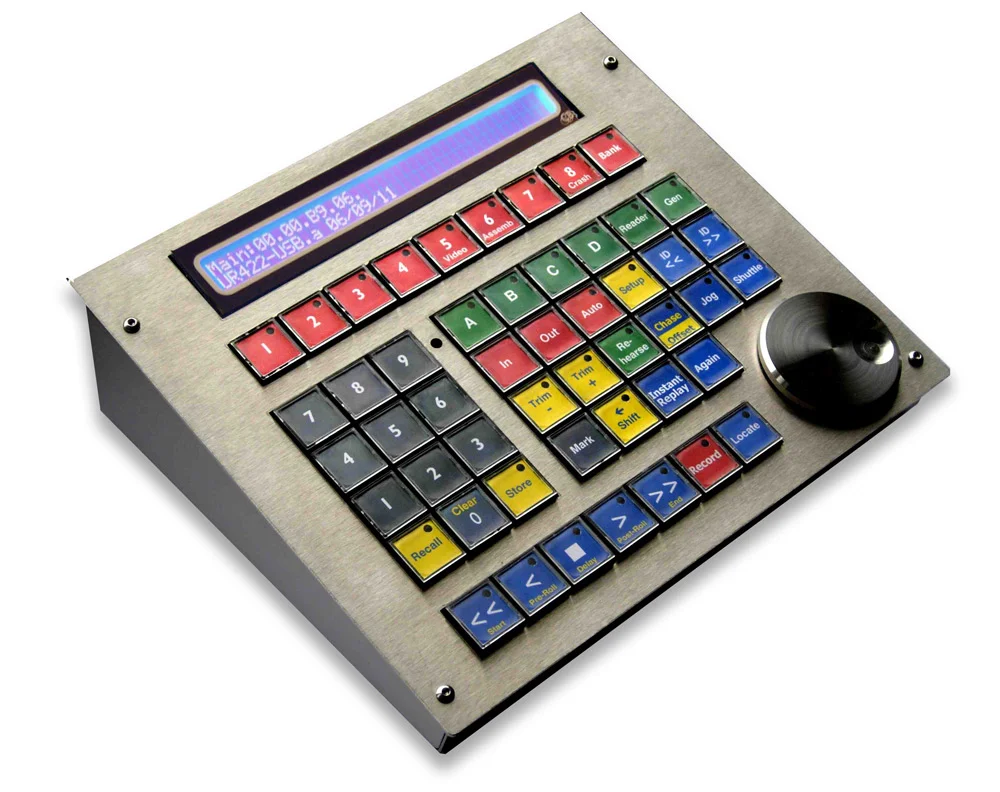

UR422-USB remote is designed as a small footprint low profile versatile remote control and incorporates the custom upgrades that were made to the original UR-422. The keyboard is user definable and may be configured to suit specific applications. The USB port provides the power and direct connection to a DAW or Video Workstation to provide track arming and a Jog/shuttle machine control interface. The machine control and track arming can be routed to separate ports allowing control of video playback whist recording on an separate audio recorder

Manuals

Manuals and Data Sheets



Français

Windows & Mac Config Software

Windows and Mac UR-422/SR-422/TFT-422/DFC-422 Configuration and Firmware

All the keys on the UR/SR/DFC/TFT-422 may be defined indiviually using the configuration tool. UR/SR/TFT-422 Software is saved in Flash Rom and can be updated using the windows/mac configuration tool via the USB port.

20th Sept 2016 - SR4XMC(RM-6 Protocol) and Assemble Macro added
19th Aug 2015 - Keyboard save/recall routines updated
28th Jan 2015 - Key Macro Lock error mesages modified
14th Jan 2015 - Key Macro Lock error mesages added
11th Aug 2014 - New DFC-tft and UR-tft panels added with Extra Macros
23rd May 2014 - More Macros and better information
5th Nov 2013 - Mosaic Macro Added

Windows configuration program

Mac-X configuration programWindows/Mac/Linux DriversFTDI VCP Driver Page The FTDI USB chipset is used, the latest drivers may be found on the FTDI site

Firmware

FIRMWARE UPDATER

IMPORTANT: You will need RS422UPD to update your firmware, please see below; to download please click on button. Please read the included manual for details!
