I-Mon
34 I/P, 27 O/P Analogue Immersive Monitor Controller for Atmos/Auro, 7.1, 5.1 and Stereo

Angle2 I-Mon.JPG

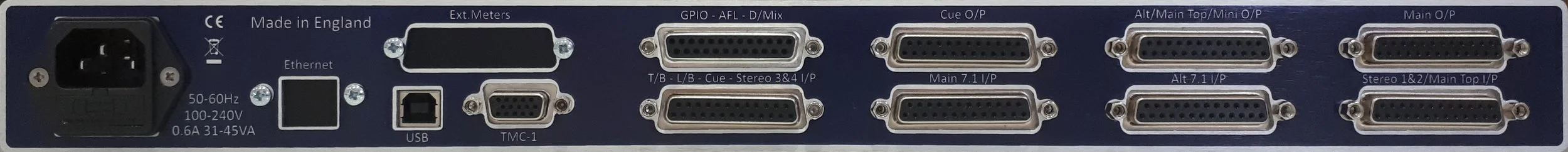

Based on the A-Mon the I-Mon immersive analogue monitor control unit is housed in a 1U rack mount box. Designed for any format from stereo to 12 or 14 channel immersive audio. This versatile unit is designed to provide a cost effective solution to installing immersive monitoring in smaller studios. The I-Mon may be configured with either 12 or 14 channel Main input and Main output and with either 1 or 2 talkback and listen mic inputs.

Basic Specification: Main Output 7.1.4 plus Left and Right rear Bass Extension Outputs, One or Two Stereo Alt outputs

  • Inputs: 1x 7.1.4, 1x 7.1, 2 x Stereo plus 2 or 3 stereo Cue Inputs

  • Cue inputs available on cue sends and main outputs

  • Four Cue outputs - Studio L/S, Headphones, Cue1, Cue 2

  • Three Control Room speaker selections

  • One/Two Listen back microphone inputs

  • One/Two Talkback microphone inputs

  • External Meter Feed (Option)

  • Stereo Down Mix Output

  • 34 Inputs 27 Outputs

  • Stereo AFL Input

  • Slate output

  • Input Sum

  • GPIO

Pricing

  • I-Mon Only £1,600 (INTRODUCTORY PRICE)

  • I-Mon + TMC-1 bundle £2,500 (INTRODUCTORY PRICE)

  • I-Mon + TMC-1-S6 bundle £2,600 (INTRODUCTORY PRICE)

Please check for a local distributor before ordering direct.

Manuals
Firmware

FIRMWARE UPDATER

IMPORTANT: You will need MIDIUPD to update your firmware, please see below;

FIRMWARE

Dec 2018: Imon-18C11 Updated for 14 channel In/Out (9.1.4/7.1.6)

Dec 2018: TMC1-IMon-18C12.bin Updated for 14 channel in/out (9.1.4/7.1.6)



Specification

Design Rules

To avoid any low frequency phase errors and capacitor distortion almost all signal paths in
the I-Mon are DC coupled. The only exceptions are the talk back and listen back
microphone inputs.

Bass Extension Low pass filter uses Low distortion Polyphenylene Sulphide Film Capacitors

To avoid cross talk any unused inputs are muted at the input.

DC Coupled metering with precision rectifiers to provide approximately 60 dB of range.

The NJM2068 op amp was selected for its audio performance.

To minimise distortion audio switching via high voltage cmos (+/-14v) with a maximum
signal level of +/-8v p to p.

Gain Control via CS3318 gain control chip with muting and zero crossing switching for click
free input/output selection, mutes and gain control.

Inputs:

• 10 kOhm balanced or unbalanced
• Input trim: -10dB to +20dB 1dB steps
• Maximum Input Level: +24 dBu @ unity gain

Outputs:

• 100 Ohm balanced or 50 Ohm unbalanced
• Balanced:+4 dBu nominal, Unbalanced:6 dB below balanced line level
• Maximum Output Level:+24 dBu
• Output Trim : -4 to +4 dB in 0.5dB steps
• Frequency Response:10 Hz to 100 kHz (± 0.05 dB)
• THD+N:< 0.004% (unity gain)
• IMD:< 0.005% (unity gain)
• Noise below +4 dBu:< -90 dB (unity gain)
• Crosstalk: < -80 dB (unity gain +20dBu Input)
• Headroom: >20 dB (above +4 dBu)
• CMRR: > 55 dB (10 Hz to 20 kHz) <-60db(10Hz to 1kHz)
