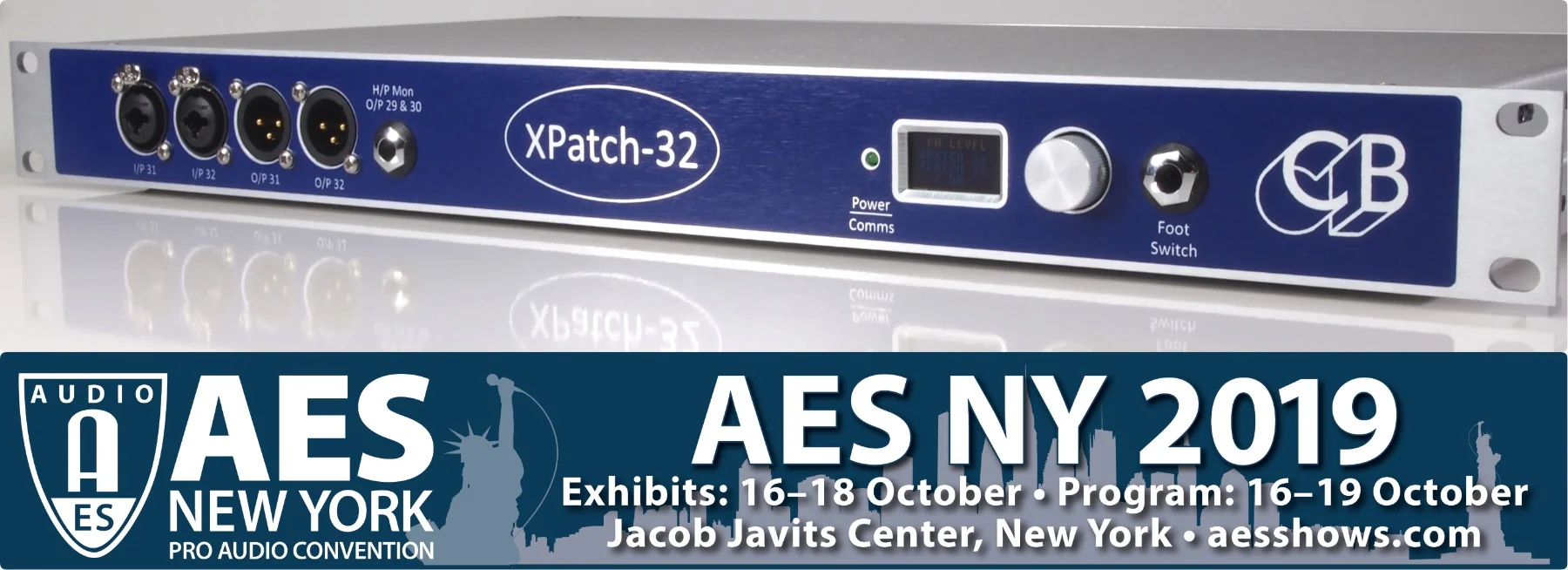

The New XPatch-32 will be showing at AES NY 2019

The XPatch-32 and TMC-2 will be showing at AES NY 2019

Stand 935 (AEA Ribbon Mics & Preamps)


XPatch-32

32x32 digitally controlled, fully analogue audio patch bay

CB Electronics introduces XPatch-32, designed by multi-award-winning designer Colin Broad. XPatch-32 is a 32x32 digitally controlled, fully analogue audio patch bay routing system for audio professionals and aimed at streamlining workflow in even the most demanding post or music studios.



Level Control of inputs & Outputs


Metering of Inputs & Outputs


Headphone Monitoring of Inputs & Outputs


Snapshot selection from encoder or footswitch


O-Led display of selected input and snapshot


Connect a TMC-1 or TMC-2 to use as Monitor Controller with Electronic Patch



XPatch Software

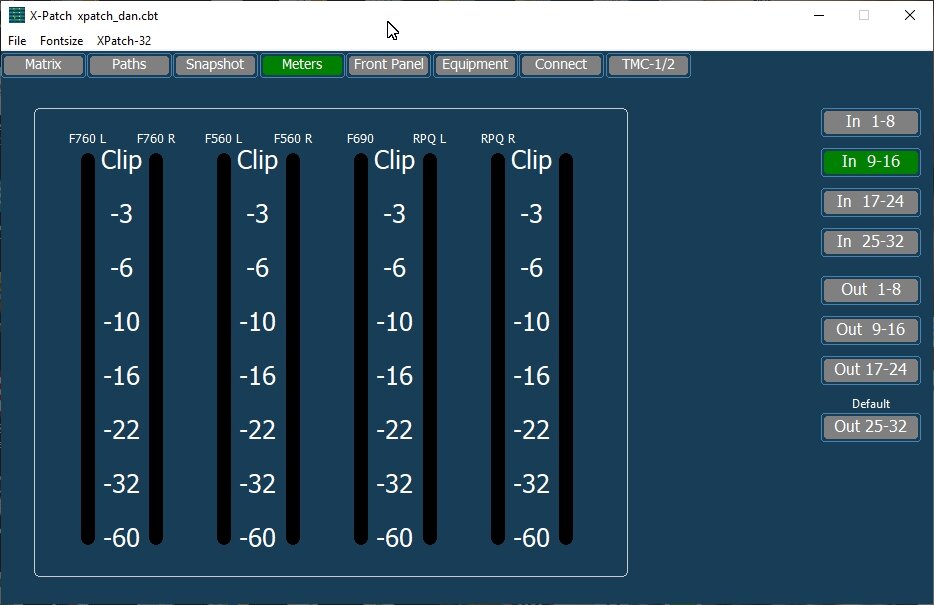

Meters Page

Meters Page

Front Panel Page

Front Panel Page


Specification

  • 32x32 CROSSPOINT ROUTING

  • 2 INPUT COMBO XLR LINE LEVEL / ¼ INCH JACK DI INPUT

  • 2 OUTPUT FRONT PANEL XLR CONNECTIONS

  • FRONT PANEL HEADPHONE MONITORING

  • CREATE, STORE & RECALL ROUTINGS

  • ANY INPUT CAN CONNECT TO MULTIPLE OUTPUTS

  • OSX & WINDOWS COMPATIBLE SOFTWARE

  • SOFTWARE & FIRMWARE UPDATES VIA USB

  • 8 CHANNELS OF METERING

  • +4/-10 dBm LINE LEVEL SELECTION ON EVERY INPUT AND OUTPUT

  • I/O ON DB-25 CONNECTORS - TASCAM FORMAT

  • UNUSED I/O ARE MUTED TO MINIMISE CROSSTALK

  • FOOTSWITCH INPUT FOR SELECTION OF SNAPSHOTS (PRESETS)

  • LOAD AND SAVE PREDEFINED SIGNAL PATHS

  • CONNECT A TMC-1 OR TMC-2 TO USE AS A MONITOR CONTROLLER WITH ELECTRONIC PATCH

  • DESIGNED BY CB ELECTRONICS MULTI-AWARD-WINNING DESIGNER COLIN BROAD
